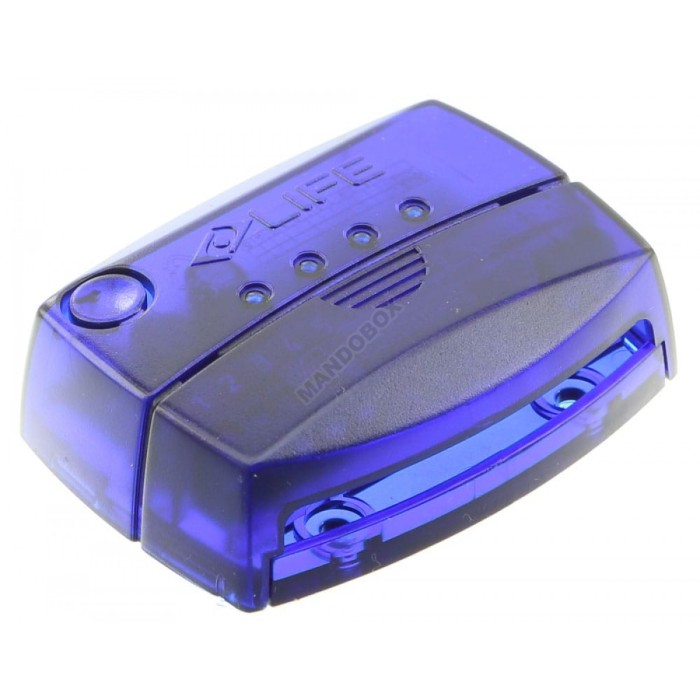

Life FAST R1E 433.92Mhz 1 Channel Rolling Code Receiver

Life FAST R1E 433.92Mhz 1 Channel Rolling Code Receiver

Life FAST R1E 433.92 Mhz 1 Channel  Rolling Code Receiver.

The FASTR E receivers have a 750 integrated memory code, and a terminal board for the power supply connection, aerial and relay N.O. (channels). The number of relays varies from 4 (R4E) to 2 (R2E) to 1 (R1E), according to the different models. Each relay can be used in 4 different ways of functions: monostable, bistable, short timing 30 sec. and long timing 180 sec.

Technical features:


  •     Number of channels: 1
  •     Frequency: 433,92 MHz
  •     Code: rolling code
  •     Number of codes: 750
  •     Power supply: 12-24 V a.c./d.c.
  •     Input impedance: 50 Ohm
  •     Sensitivity: 105 Dbm
  •     Absorption in standby: min. 20 mA / max. 100 mA
  •     Relay contact normally open: max. 50 V 0.5 A
  •     Operating temperature: -10°C +55°C
  •     Dimensions: 77x59x24 mm
  •     Weight: 70 g
Note! Life FAST R1E receiver is compatible with Life FIDO transmitters.


Transmitters
Frequency433.92Mhz
