Life ERGO 230Vac underground kit for swing gates up to 3m
Click Image for Gallery
Ergo is the underground motor which does not fear the passing of time. Its mechanical features are among thesturdiest in the market. Particular technical choices ensure solidity, silent operation and long-term reliability. Choose Ergo if you are seeking a more resistant automation.
• Available in 24V and 230V versions.
• Structure in lightweight, durable aluminium.
• Gear motor enclosure made in die-cast materials and coated with polyester paints specially made for outdoor use.
• Thick bottom.
Life ERGO 230Vac ER4 underground motor is quick, grease-lubricated, irreversible gear motor, complete with mechanical stop for opening and closing. Model equipped with encoder. Pre-wired 2.5 m connector cables. Condenser supplied.

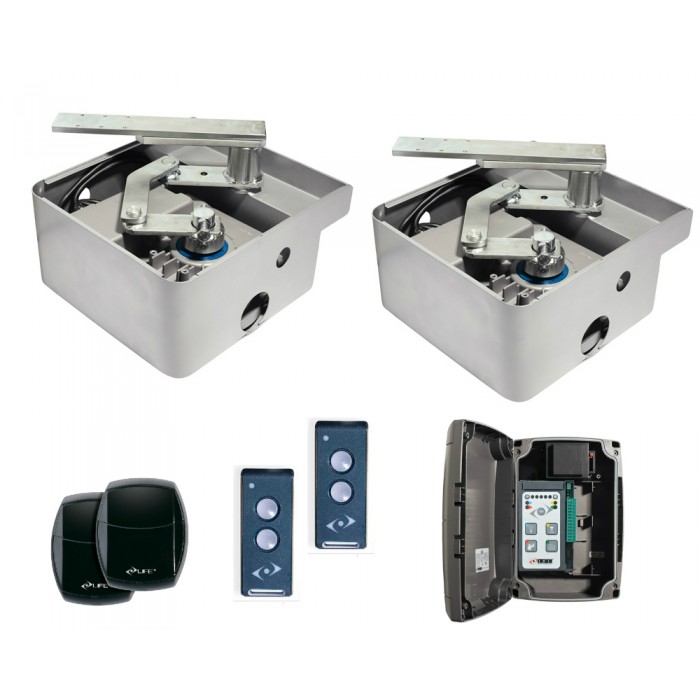

The Kit Contains
- 2 X ER4 230Vac underground motor
- 1 X GE UNI RS DL control unit with integrated receiver
- 1 pair of VISIO external photocells
- 2 X DREAM 2 button 433.92Mhz rolling code transmitter
| Technical | |
| IP Rating | 67 |
| Max Gate Leaf Length | 3.0m |
| Max Speed | 18s |
| Motor Voltage | 230Vac |
| Work Cycle | 35% |
